  • POLISAR T-100T

TECHNICAL SPECIFICATIONS

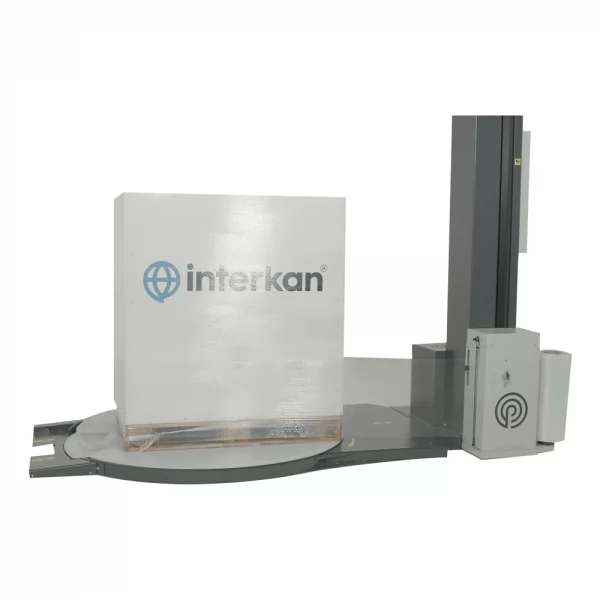

PoliSAR T-100T

Turntable Diameter 1650 mm
Turntable Speed Max. 12 rpm
Wrapping Height 2200 mm / 2750 mm / 3000 mm
Capacity 15–20 pallets/hour
Pallet Dimensions (mm) 800 × 1200 / 1000 × 1200 / 1200 × 1200
Maximum Pallet Weight 1200 kg / 1650 kg
Pre-Stretch Ratio 200% Motorized Pre-Stretch System
Operating Voltage 220 V – 50 Hz
Power Consumption 1.3 kW
Machine Dimensions 1650 mm × 2580 mm × 2380 mm
Machine Weight 600 kg
Turntable Height 85 mm
Control System GMT E70
Automatic Pallet Height Detection Standard











  • RELATED PRODUCTS

POLISAR T-100

POLISAR T-200

POLISAR T-100T

POLISAR T-100K

POLISAR D-300T

Machine Type Stretch Films

  • DESCRIPTION
  • DOCUMENT
  • VIDEO

Our machines are equipped with a motorized pre-stretch system. Thanks to the 200% pre-stretch ratio, a 23-micron / 1500 m machine stretch film can be extended and used up to approximately 4000 meters. This results in significant film savings and reduced wrapping costs.



Via the operator control panel:

  • Single wrap (upward only),
  • Double wrap (upward + downward),
  • Top cover wrapping (rain-proof wrapping)
    settings can be adjusted. In addition, recipes can be created and stored in memory for different products.



Within each recipe;

  • Number of wraps and pre-stretch ratios for bottom / middle / top zones,
  • Independent pre-stretch settings for upward and downward wrapping
    can be defined separately.

After the wrapping cycle is completed, the machine automatically returns to its home (start) position.

Additionally:

Manual turntable rotation and manual elevator up/down positioning features provide added convenience for the operator.



In terms of safety:

The machine is equipped with a total of 3 emergency stop buttons:

  • Manual emergency stop on the operator panel,
  • Automatic emergency stop under the elevator carriage,
  • Automatic emergency stop on the stretch film loading door.



We will be pleased to assist you in selecting the most suitable model for special pallet sizes or alternative solutions.

Technical Support: After machine delivery and throughout its operational life, our technical service team will always be at your side. Installation and operator training are provided by our company.
