  • POLISAR R-100

TECHNICAL SPECIFICATIONS

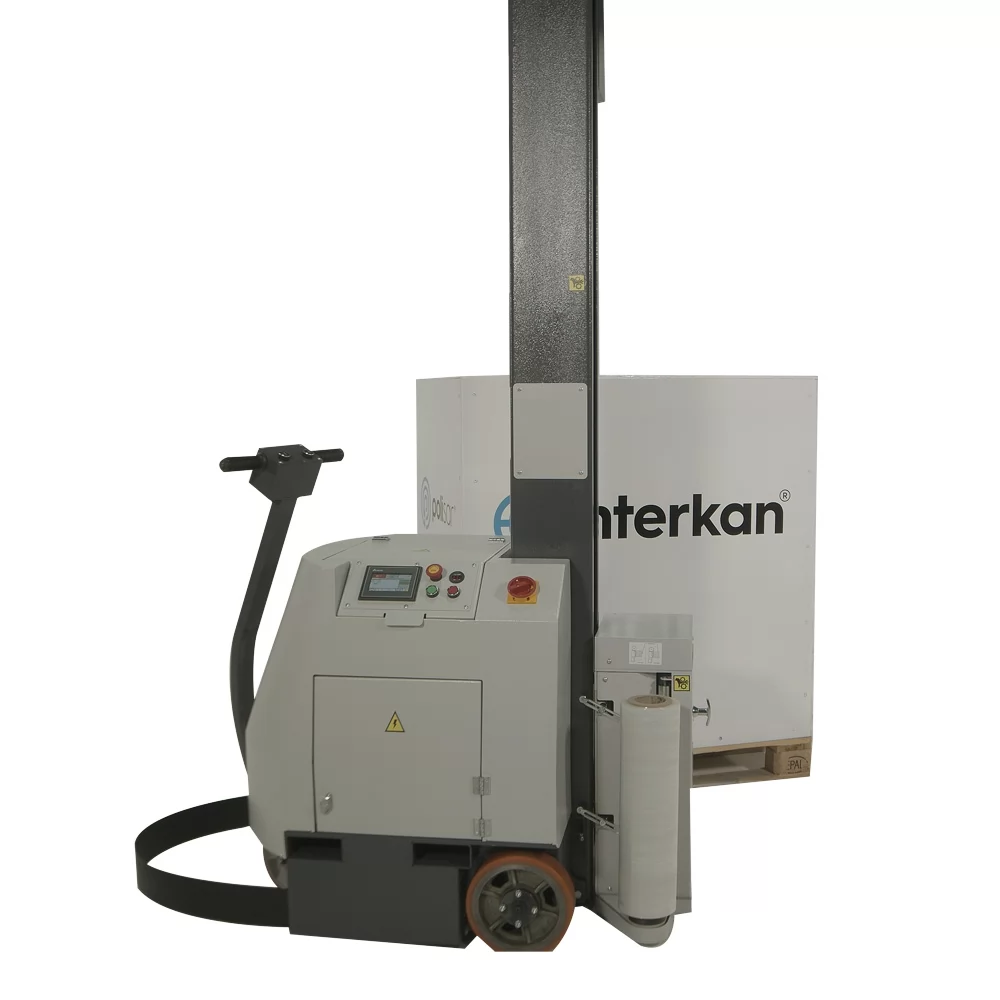

PoliSAR R-100
Travel Speed Max. 6 rpm
Wrapping Height 2200 mm / 3000 mm
Capacity 10–15 pallets/hour
Pallet Dimensions (mm) Unlimited
Pallet Weight Unlimited
Pre-Stretch Ratio 200% Motorized Pre-Stretch System
Operating Voltage 24 V – 50 Hz
Charging Time 8–10 hours
Charge Capacity 100–120 pallets
Machine Weight 300 kg
Machine Dimensions 800 mm × 1500 mm × 2500 mm
Control System GMT E43
Automatic Pallet Height Detection Standard











  • RELATED PRODUCTS

Details

POLISAR T-100

Details

POLISAR T-200

Details

POLISAR T-100T

Details

POLISAR T-100K

Details

POLISAR D-300T

Details

Machine Type Stretch Films

  • DESCRIPTION
  • DOCUMENT
  • VIDEO
  • Pre-stretch ratio: 200% (When a 23-micron stretch film is stretched at a 200% ratio, its thickness is reduced to approximately 7.67 microns.)
  • Number of motors: 3 motors (Travel motor, Elevator motor, Pre-stretch motor) (Italian + Taiwanese)
  • Battery power specifications: 2 × 100 Ah dry-type, maintenance-free batteries
  • Battery operating capacity: 100–120 pallets
  • Battery full charging time: 8–10 hours
  • Control system: GMT PLC
  • Operator panel: 7” GMT touchscreen display
  • Maximum product dimensions: Unlimited length, unlimited width, maximum height 3 m
  • Maximum product weight: Unlimited
  • Rotation speed: Adjustable via the control panel and storable in recipes
  • Elevator speed: Adjustable via the control panel and storable in recipes
  • Pre-stretch settings: Five different pre-stretch ratios can be saved in separate recipes: bottom wrap pre-stretch, middle wrap pre-stretch, top wrap pre-stretch, upward wrapping pre-stretch, and downward wrapping pre-stretch
  • Wrapping modes: 3 different wrapping modes (Single wrap, Double wrap, Top cover wrapping – all can be stored as recipes)
  • Maximum stretch film roll diameter: 300 mm
  • Minimum stretch film roll diameter: 75 mm
  • Usable stretch film thickness: 17–35 microns (depending on pre-stretch ratio settings)
  • Anti-tip emergency stop system: If the machine encounters an obstacle during travel, the drives enter a fault state and movement is immediately stopped
  • Anti-collision emergency stop system: If an obstacle is detected in front of the machine during travel, the barrier switch is triggered and the machine enters emergency stop mode
  • Anti-crushing emergency stop system: Thanks to the safety switch located under the elevator, the machine enters emergency stop mode upon any contact
  • Emergency stop during stretch film replacement: The machine automatically enters emergency stop mode during film change
  • Emergency stop on the control panel
  • Unlimited recipe creation capability
  • Automatic pallet height detection
  • Automatic pallet presence detection
  • Soft start and soft stop function
  • Easy and fast stretch film replacement process
  • Wrapped pallet counter with memory storage
  • Fast spare parts availability and service support thanks to local manufacturing
